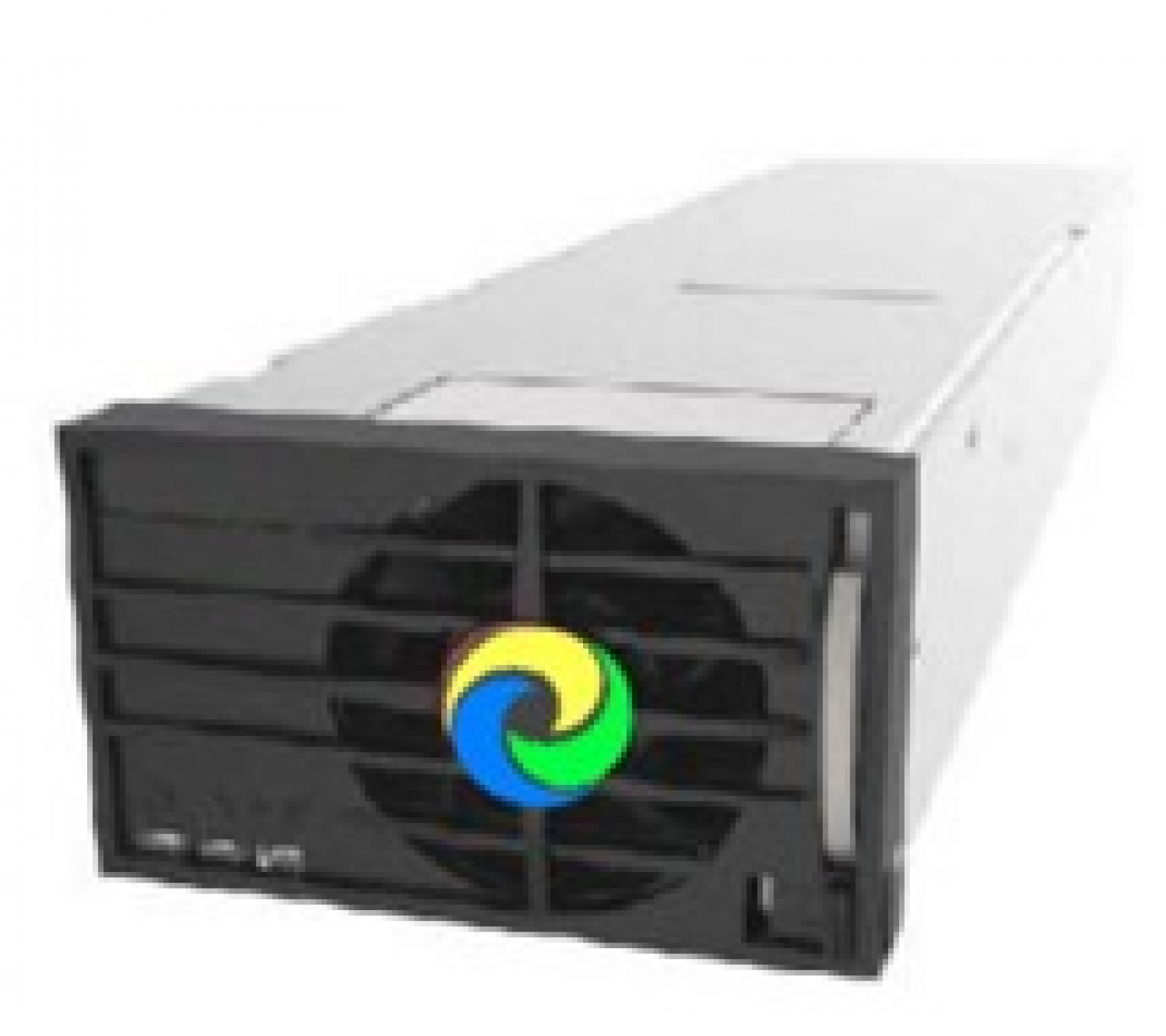

FlexCombi 1500 (24V) Rectifier Module

Module chỉnh lưu AC/DC dùng để xây dựng và mở rộng hệ nguồn DC.

Download tài liệu kỹ thuật Quan tâm sản phẩm

“Building block” của hệ FlexCombi, cho phép mở rộng công suất linh hoạt.

- Hot swappable

- Current sharing

- Wide input range

- High efficiency

- Fan control

- Output: 24VDC / 50A

- Power: 1500W

- Input: 85–300VAC

- Efficiency: ~94%

- Temp: -40 → +70°C (option 80°C)
