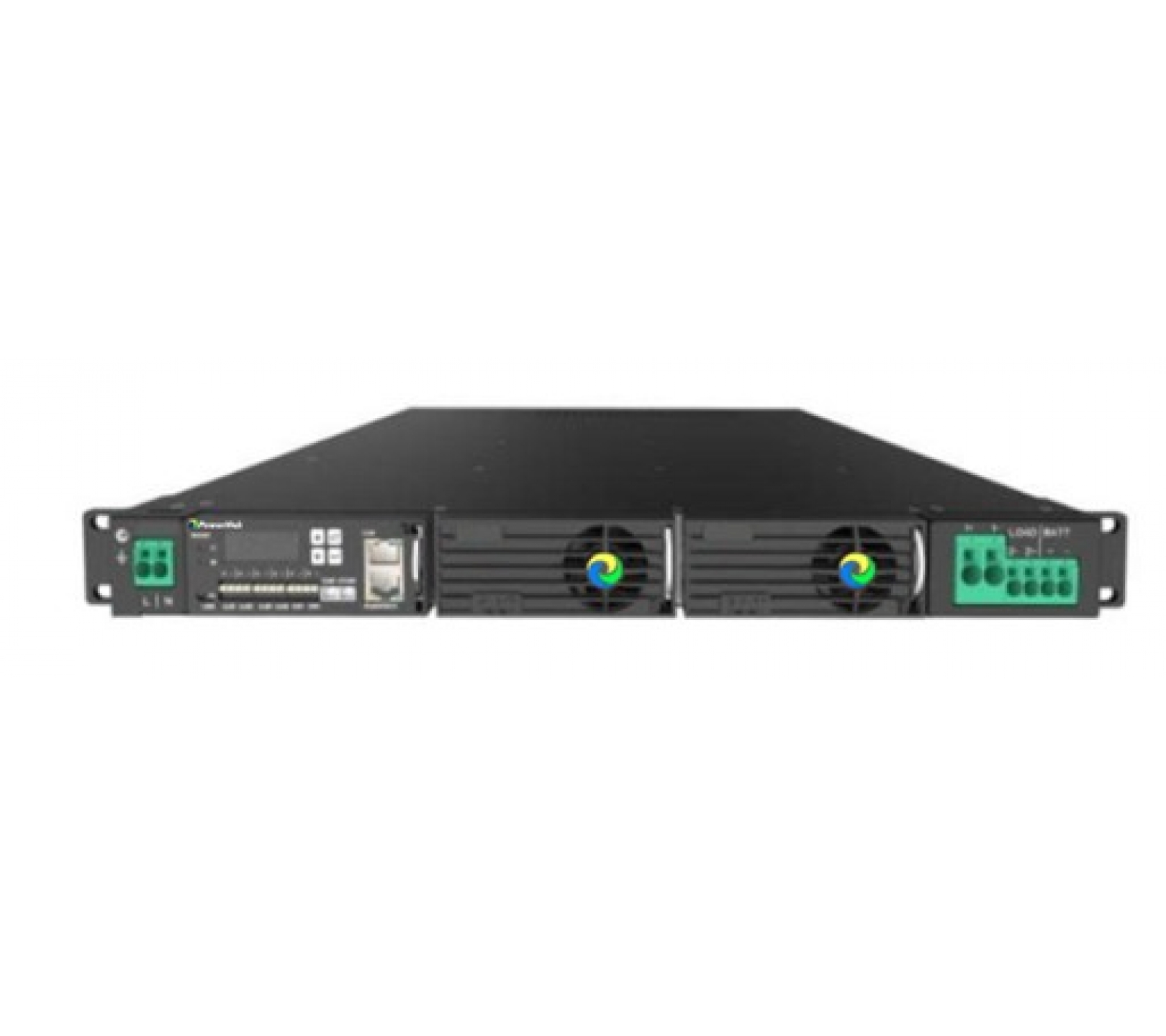

FlexCombi 100 (24V) Rectifier System

Hệ thống nguồn DC nhỏ gọn, tích hợp đầy đủ cho telecom và hệ thống điều khiển.

Download tài liệu kỹ thuật Quan tâm sản phẩm

All-in-one: rectifier + monitoring + distribution + battery management.

- Thiết kế tích hợp hoàn chỉnh

- Hot-swappable module

- Remote monitoring

- Surge protection

- Battery management built-in

- Output: 24VDC / 100A

- Input: 85–290VAC

- Efficiency: ~93–94%

- Temp: -40 → +70°C

- Rack: 1U
